Stealth Shades Pro™

Before you start (what you’ll need)

• Fully charged glasses (use the supplied USB data/charging cable)
• A microSD / TF card (Class 10 or UHS-I recommended), max 128GB
• A computer or card reader for transferring files
• The included storage box and cleaning cloth for care

1. Charge the glasses

1. Plug the included USB cable into the glasses and connect to a USB port or 5V/1A wall adapter.
2. Charge for about 2 hours (battery: 300 mAh).
3. Expect roughly ~2 hours of use on a full charge.

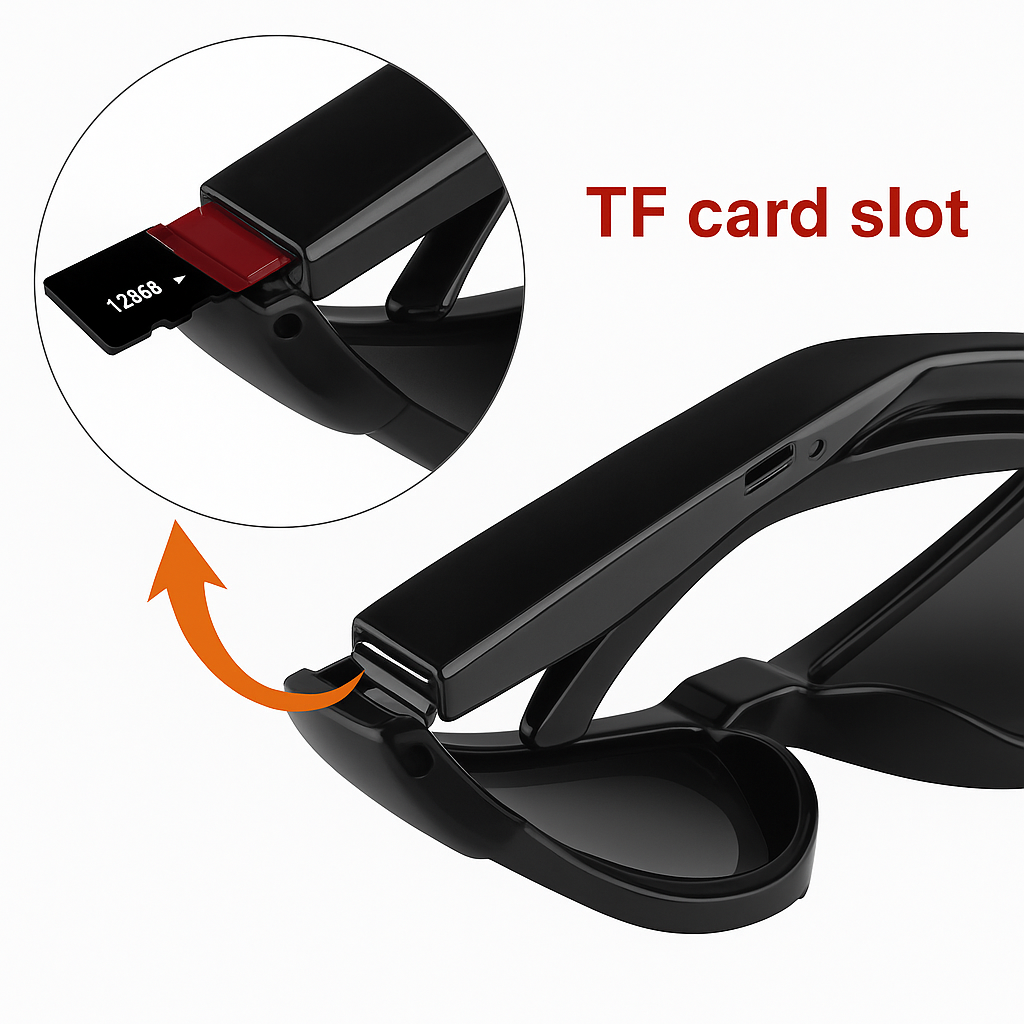

2. Insert a TF / microSD card

1. Make sure the glasses are powered off.
2. Locate the TF card slot on the arm of the glasses and gently push the microSD card in until it clicks (metal contacts facing the correct way).
3. Use a Class 10 / UHS-I card up to 128GB for reliable Full HD recording.

3. Start recording (one-button operation)

• Video: Long-press the main button for ~3 seconds to start video recording.
• Photo: Short-press the same button once to take a photo.
• There are no lights that turn on during video recording (so recording is discreet).
• To stop video recording, long-press the button again (or follow the same on/off action used to start). If your unit behaves slightly differently, consult the included user manual.

4. Loop recording & storage notes

• The glasses support loop recording — when the card fills, the device will overwrite the oldest files.
• Back up any important footage to your computer before the card fills.

5. Transfer files to your computer

Option A — Remove card:

• Remove the microSD card and use a card reader to copy files to your PC/Mac.

Option B — USB connection:

• Connect the glasses to your PC with the supplied data cable. The device should appear as a removable drive (no special driver required).
• Copy your .AVI video files and .JPG photos to your computer.

File types & playback:

• Video: AVI (1920×1080 @ 30fps)
• Photo: JPG (up to 2560×1440)
• Use mainstream players (VLC, Windows Media Player, QuickTime).

6. Format & compatibility tips

• If the glasses do not recognise the card, try a different brand/model or format the card on your computer (follow the manual’s recommended format).
• Use recommended cards (Class 10/UHS-I) for stable 1080p recording.
• Maximum supported card: 128GB.

7. Care & storage

• Clean lenses with the included cloth only.
• Keep the glasses dry — do not submerge in water.
• Store in the supplied storage box when not in use.
• Avoid extreme temperatures and heavy impacts.

8. Quick troubleshooting

• Won’t power on: Charge the battery fully.
• No files saved: Check microSD orientation, capacity (≤128GB), and free space; try reformatting or another card.
• Playback errors: Try VLC player or copy files to PC and play there.
• Short battery life: Make sure the battery is fully charged; avoid leaving on when not in use.

9. Legal & responsible-use reminder

These glasses record audio/video. Laws about recording vary by country and location — do not record people in private settings without their consent. Use Stealth Shades Pro responsibly and in accordance with local laws.
